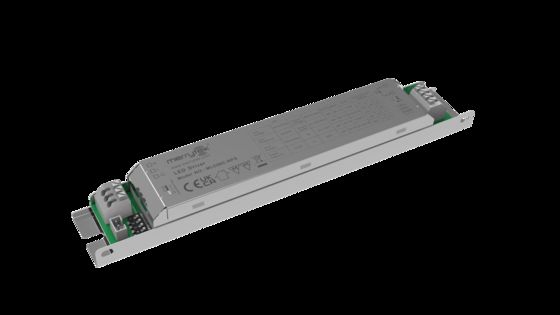

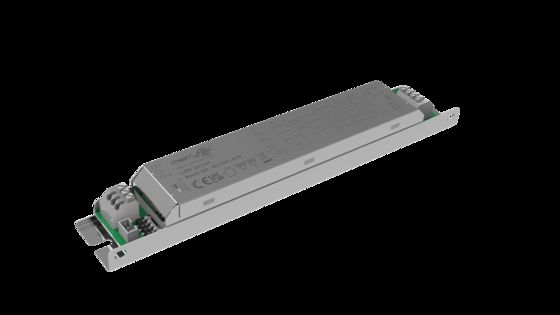

60W Long Strip Sensor Dim Led Driver, 200-350mA Output, Flicker-free, Built-in Installation

  • 60W Long Strip Sensor Dim Led Driver, 200-350mA Output, Flicker-free, Built-in Installation
  • 60W Long Strip Sensor Dim Led Driver, 200-350mA Output, Flicker-free, Built-in Installation
Lieu d'origine Shenzhen, Chine
Nom de marque Merrytek
Certification CE, SAA
Numéro de modèle MLC60C-NPS
Quantité de commande min 100pcs
Prix Négociable
Détails d'emballage Bubble Sac Forboard, Carton （K = A）
Délai de livraison 1, échantillon et petite commande: Dans les 5 jours ouvrables suivant la réception de votre paiement
Conditions de paiement T / t
Capacité d'approvisionnement 10000 PC / mois

Contactez-moi pour des échantillons gratuits et des coupons.

WhatsApp:0086 18588475571

Le WECHAT: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Tension nominale 198-264VAC 50Hz / 60Hz Puissance en veille ≤0.3W
Surtension <22A (100us demi-courant) @ 230vac Température de fonctionnement -25℃~+50℃
Certificat CE \ SAA Durée de vie Garantie de cinq ans (TA = 50 ℃ @ 230VAC pleine charge)
Mettre en évidence

60W dimmable LED driver

,

flicker-free sensor driver

,

built-in installation LED driver
Laisser un message
Description de produit
60W Long Strip Sensor Dim LED Driver, 200-350mA Output, Flicker-free, Built-in Installation
Product Features
  • Metal strip non-isolated power supply; flicker-free PWM dimming power supply
  • 12V auxiliary power supply; compatible with different sensor and wireless smart modules
  • High performance with high efficiency, high PF value and low stand-by power
  • Conforms to new ERP standard and complies with CE, SAA certification standards
  • Built-in power supply suitable for strip lamps; parameters adjustable via DIP switches
Technical Parameters
Product No. MLC60C-NPS
Input Voltage Range 198-264Vac 50Hz/60Hz
Input Current 0.3A (@230Vac full load)
Operating Voltage 220-240Vac 50Hz/60Hz
No-load Power ≤0.3W
Stand-by Power ≤0.3W
Power Factor ≥0.95 (@230Vac full load)
Working Efficiency 90% (230V Max load)
THD ≤20%(@230V ac full load)
Leak Current <0.5mA/240V
Surge Current <22A (100us half-current) @230Vac
Output Working model Constant Current
Type of load LED
Start Time ≤1S (@230Vac full load)
Ripple Current ±5% (@230Vac full load, LED full load)
Strobe Frequency Requirement Flicker free (≤5%)
No-load Output Voltage 200Vdc Max
Load Power 61.25W Max
Connecting Port PWM Yes (5V and 3.3V PWM signals are compatible)
Port Connecting Method 3PIN PH2.0 row needles terminal
Auxiliary Power Supply 12V±1V, Max100mA
Protection Requirements Operating Temperature/Humidity -25℃~+50℃
Storage Temperature/Humidity -40℃~+80℃ Humidity: 85% (Non-condensing)
Atmospheric Pressure 86~106KPa
Lightning Surge LN:1KV
Certificate Standards EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2, EN61000-3-3
Environmental requirement Compliant to RoHS
Certificate CE SAA
Output Current Accuracy ±5%
Wiring Press terminal, wire diameter: 0.5-1.0mm²
IP Rating IP20
Protection Class Class II
Installation Built-in
Dimension 195*30*21mm
Net Weight 138g±3g
Warranty Five years warranty (Ta=50℃@230Vac full load)
Product Characteristic Testing
60W Long Strip Sensor Dim Led Driver, 200-350mA Output, Flicker-free, Built-in Installation 0
60W Long Strip Sensor Dim Led Driver, 200-350mA Output, Flicker-free, Built-in Installation 1
Product Information
60W Long Strip Sensor Dim Led Driver, 200-350mA Output, Flicker-free, Built-in Installation 2
60W Long Strip Sensor Dim Led Driver, 200-350mA Output, Flicker-free, Built-in Installation 3
60W Long Strip Sensor Dim Led Driver, 200-350mA Output, Flicker-free, Built-in Installation 4
Installation
60W Long Strip Sensor Dim Led Driver, 200-350mA Output, Flicker-free, Built-in Installation 5
60W Long Strip Sensor Dim Led Driver, 200-350mA Output, Flicker-free, Built-in Installation 6
DIP Switch Setting
I rated (CC) 1 2
350mA ON ON
300mA ON -
250mA - ON
200mA - -
Initialization

After power-on, it is half bright, and after self-test, it enters the 0-10V / PWM port voltage setting brightness (suspended for full bright).

Application Notice
  1. Please use product according to specifications. Failure may occur if the product is used beyond the service conditions.
  2. Connect loads firstly before turning on the input power; otherwise, load may be damaged.
  3. After the LED drive input power is off, the output end still has residual voltage, which can be maintained for about 3 minutes.
  4. This product is a non-isolated power supply:
    • To avoid electric shock, do not operate with power on before connecting load.
    • To avoid damaging sensing head, power off is also required before connecting.
