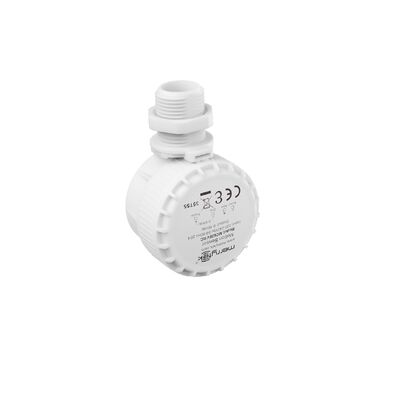

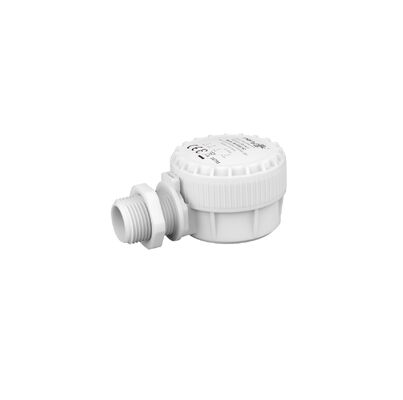

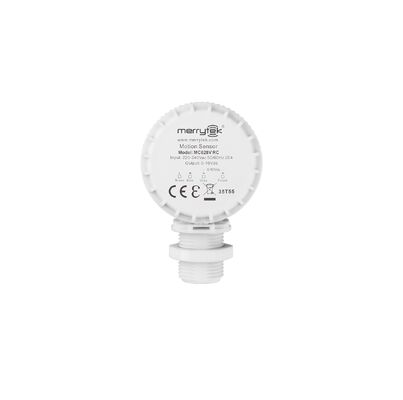

Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation

  • Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation
  • Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation
  • Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation
Lieu d'origine Shenzhen, Chine
Nom de marque Merrytek
Certification CE
Numéro de modèle MC628VRC
Quantité de commande min 100 pièces
Prix Négociable
Détails d'emballage Boîte en papier blanc + carton
Délai de livraison 1, échantillon et petite commande: dans les 5 jours ouvrables après réception de votre paiement. 2,
Conditions de paiement T/T
Capacité d'approvisionnement 10000 PC / mois

Contactez-moi pour des échantillons gratuits et des coupons.

WhatsApp:0086 18588475571

Le WECHAT: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Tension nominale 120-277 VCA 60 Hz Mode de travail 0 à 10 Vdimming
Température de fonctionnement -35°C... +55°C. Je vous en prie. Indice IP IP65
Installation Monture latérale M20 Durée de vie 5 ans de garantie @Ta 230V à pleine charge
Mettre en évidence

warehouse motion sensor side mount

,

microwave motion sensor trip-proof

,

high bay light motion sensor
Laisser un message
Description de produit
Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light
Side mounting motion sensor designed for linear, trip-proof, and high bay lighting applications in warehouse environments. Maximum installation height of 12 meters.
Key Features
  • Operating voltage: 120~277V AC
  • Maximum mounting height: 12m
  • High-sensitivity and low-sensitivity modes for metal ceiling/reflector environments
  • Compatible with 0-10V dimmable LED drivers for 2-step or 3-step dimming
  • M20 side mount for linear highbay and tri-proof lights
  • Dim+/Dim- function with daylight priority
  • 5-year warranty
Technical Parameters
Input Operating Voltage Range 108-305VAC 60Hz
Output Working Mode 0-10V Dimming
Type of Load LED (0-10V LED driver)
Dim Interface 0-10V Dimming < 50mA (Non-constant source) 10%, 20%, 30%, 50%
Stand-by Power <1W
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz, ISM band
Transmitting Power 0.5mW Max.
Hold Time 5s/30s/1min/3min/5min/10min/20min/30min
Detection Range See detection pattern
Mounting Height 12m Max.
Detection Angle 150° (wall mount), 360° (ceiling mount)
Operating Environment Operating Temperature -35℃ to +55℃
Storage Temperature -40℃ to +80℃ humidity: 10%-95% (non-condensing)
IP Rating IP65
Operating Functions
  • ON/OFF Function (stand-by period set to "0")
  • 2-step dimming function (stand-by period set to "+∞")
  • 3-step dimming function (stand-by period set to "10s/1min/3min/5min/10min/30min")
  • Daylight priority (stand-by period set to +∞)
Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 0
Detection Patterns
Detection area is affected by volume of motion object and motion speed. Testing conducted with 165cm height person walking at 0.5m/s.
Ceiling Mounted Detection
Height: 3m
Sensitivity: 100%/75%/50%/25%		 Height: 6m
Sensitivity: 100%/75%/50%/25%		 Height: 9m
Sensitivity: 100%/75%/50%/25%		 Height: 12m
Sensitivity: 100%/75%/50%
Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 1 Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 2 Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 3 Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 4
Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 5 Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 6 Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 7 Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 8
*Only 100%/75%/50% detection sensitivity is workable when installed at 12m mounting height. 25% sensitivity is not able to detect motion signal.
Wall Mounted Detection
Height: 2m
Sensitivity: 100%/75%/50%/25%
Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 9
Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation 10
Application Guidelines
  • Installation must be performed by a qualified electrician with power turned off
  • Plastic and glass lampshades reduce sensitivity (20% reduction per 3mm thickness)
  • Dimming performance varies with different 0-10V drivers
  • Light sensitivity thresholds are measured in sunny environments without shadows
  • For indoor use only - outdoor conditions may cause false triggering
  • Maintain minimum 3m distance between inductive sensors
  • Avoid installation near high-density objects (metal, glass, concrete) to prevent false triggering
  • Test 5 samples before mass application in new lighting projects
Factory Default Settings
  • Detection area: 100%
  • Hold time: 5s
  • Stand-by Period: 0s
  • Stand-by dim level: 10%
  • Daylight Sensor: Disable
