30m diameter detection coverage Standalone PIR presence detectors with 6m mounting height
| Lieu d'origine | Chine |
|---|---|
| Nom de marque | Merrytek |
| Certification | CE |
| Numéro de modèle | MSA069S IR |
| Quantité de commande min | 100 pièces |
| Prix | Négociable |
| Détails d'emballage | Boîte blanche + étiquettes de boîte blanche + carton |
| Délai de livraison | 1, échantillon et petite commande: Dans les 5 jours ouvrables suivant la réception de votre paiement |
| Conditions de paiement | T/T |
| Capacité d'approvisionnement | 10000 pièces par mois |
Détails sur le produit
| Tension d'entrée | 220-240 Vca, 50/60 Hz | Courant de travail | 20mA au maximum. |
|---|---|---|---|
| Consommation d'énergie | ≤0,5W | Fonction | Couverture de détection ON/OFF de 30 m de diamètre |
| Disponible | Détection de mouvement, capteur de lumière du jour | Hauteur de montage | 2,5-6 m |
| Installation | Montage encastré et en surface | taille de coupe | Φ55 mm |
| Mettre en évidence | 30m PIR presence detector,standalone PIR motion sensor,6m mounting height motion detector |
||
Description de produit

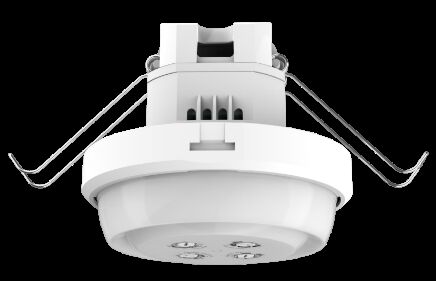

30m Diameter Detection Coverage Standalone PIR Presence Detector
Advanced standalone PIR presence detector with 30m diameter detection coverage and 6m mounting height capability.
Key Features
- PIR motion detection technology
- Accurate motion detection with ON/OFF output channel
- Integrated daylight sensor detection
- Configurable detection area, hold time, and daylight threshold via rotation switch or remote control
- Maximum detection range: 30-36m diameter
- 26A relay with 2000W resistive and 1200W inductive loading capacity
- PUSH button control functionality
- Semi-auto and auto sensing modes
- IQ intelligent mode for automatic hold time adjustment
- Sync control for multi-sensor coordination

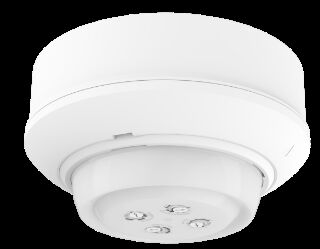

- Flush mounting and surface mounting options
Technical Specifications
Input/Output Parameters
| Input voltage | 220-240V AC |
| Rated voltage | 230V AC |
| Working current | 20mA max |
| Power consumption | ≤0.5W @230V AC |
| Output signal | ON/OFF |
| Max surge voltage | 2KV(L/N, EN61000-4-5) |
| Max surge current | 75A (50% Ipeak, twidth =500us, 230Vac full load, cold start) |
| Max loading | 2000W resistive loading and 1200W inductive loading @230Vac |
Sensor Parameters
| Function | PIR motion detection + daylight sensor |
| Detection Area | Rotation switch/MH18 remote/MH10 remote setting: 100%/75%/50%/25% |
| Hold Time | Rotation switch/MH18 remote/MH10 remote setting: Test 2s/30s/1min/5min/10min/30min |
| Daylight Sensor | Rotation switch/MH18 remote/MH10 remote setting: 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable |
| Radius detection range | 15-18m @25℃ based on 3m mounting height and tangential motion |
| Remote control | Available (MH18 remote/MH10 remote) |
| Mounting heights | 2.5-6m (typical value: 3m) |
Advanced Features
Daylight Threshold Learning Mode: Automatically learns current environment daylight level and sets it as threshold.
IQ Mode: Automatically adjusts hold time based on sensor trigger frequency (10s-10min range).
Pulse Mode: Keeps on for 2s and blocks sensing for 8s when motion detected.
PUSH Button Control: Supports auto and semi-auto modes with manual override capability.
Sync Control: Enables group control of multiple sensors for coordinated lighting control.
Application Environment
| Drill hole | Φ55mm |
| Working temperature | -25℃ to +50℃ (detection range varies with temperature) |
| Storage temperature | -25℃ to +50℃, humidity ≤60% (non-condensation) |
| Wiring standard | Wire diameter: 0.2-2.5mm², Wire stripping length: 5-8mm |
| Warranty | 5 years (indoor application) |
Certifications & Standards
| Certificate | Compliant with CE |
| Environmental requirements | Compliant with RoHS |
| IP rating | IP20 |
"N/A" means not available
Product Dimensions
Wiring Diagram
Detection Radiation Pattern
Rotation Switch Settings
Detection Area Settings
| Gear | Detection Area |
|---|---|
| 1 | 25% |
| 2 | 50% |
| 3 | 75% |
| 4 | 100% |
Hold Time Settings
| Gear | Hold Time |
|---|---|
| 1 | Test 2s |
| 2 | 30s |
| 3 | 1min |
| 4 | 5min |
| 5 | 10min |
| 6 | 30min |
| 7 | Pulse mode |
| 8 | IQ mode |
Daylight Sensor Settings
| Gear | Daylight Threshold |
|---|---|
| 1 | 5lux |
| 2 | 15lux |
| 3 | 30lux |
| 4 | 50lux |
| 5 | 100lux |
| 6 | 150lux |
| 7 | Disable |
Daylight Priority Settings
| Gear | Daylight Priority Gear |
|---|---|
| 1 | 30lux ON/200lux OFF |
| 2 | 50lux ON/300lux OFF |
| 3 | 100lux ON/400lux OFF |
| 4 | 150lux ON/500lux OFF |
| 5 | Disable |
Remote Control Options
Installation Guidelines
- Installation must be performed by a professional electrician in a power-off state
- Typical installation height is 3m for indoor use only. Avoid installation near hot or rapidly changing temperature areas to prevent false triggers
- Ensure no large objects within detection area as sensor cannot detect through objects
- Avoid placement near strong-reflective objects, wifi routers, microwave ovens, etc., to prevent false triggers
- Detection area function is based on 25℃ environment temperature. Performance varies with temperature changes
- Detection area function is optimized for tangential movement; radial movement detection range is shorter due to PIR characteristics
Product Disclaimer
Due to the complexity of product technology and differences in application environment, it is difficult to guarantee a completely accurate or complete description, so this specification is only for user reference. We reserve the right to make changes to the product specifications without notifying the user, and do not make any commitments and guarantees in the legal sense. At the same time, our company encourages users to supplement or modify the contents of our specifications after using our products.
