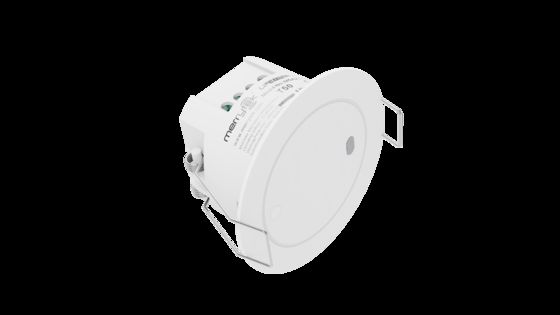

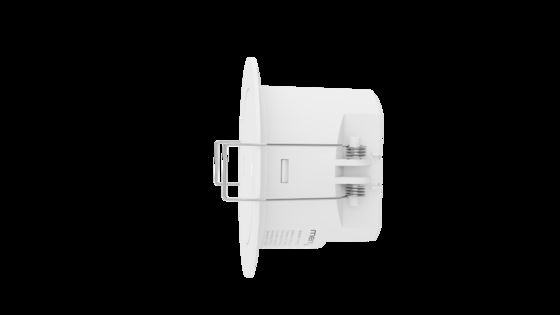

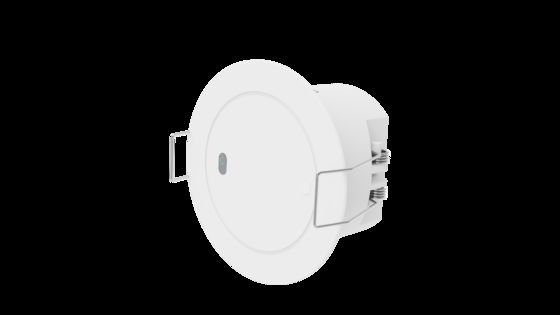

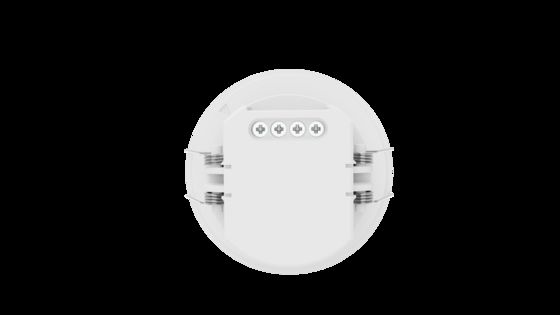

Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact

  • Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact
  • Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact
  • Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact
  • Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact
Lieu d'origine Shenzhen, Chine
Nom de marque Merrytek
Certification CE
Numéro de modèle MSA237D 99
Quantité de commande min 100pcs
Prix Négociable
Détails d'emballage Boîte blanche + étiquettes de boîte blanche + carton
Délai de livraison 1, échantillon et petite commande: Dans les 5 jours ouvrables suivant la réception de votre paiement
Conditions de paiement T / t
Capacité d'approvisionnement 10000 PC / mois

Contactez-moi pour des échantillons gratuits et des coupons.

WhatsApp:0086 18588475571

Le WECHAT: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Tension de travail 12-24VDC Mode de travail Un contact sec sans potentiel
Hauteur de montage 20,5-4,0 m Durée de vie 5 ans de garantie@Ta 230V à pleine charge
Pouvoir de travail ≤1.2W Fréquence de travail Pour les appareils de surveillance de l'environnement:
Type de détection Détection majeure / mineure / micro-mouvement Montage Support affleurant
Mettre en évidence

12-24Vdc occupancy detector

,

potential-free dry contact sensor

,

Merrytek presence detector with warranty
Laisser un message
Description de produit
Merrytek 4th Generation 12-24Vdc Input Occupancy Detector with One Potential-Free Dry Contact
Product Attributes
Attribute Value
Working voltage 12-24Vdc
Working mode One potential-free dry contact
Mounting height 2.5-4.0m
Life time 5 years warranty@Ta 230V full load
Working Power ≤1.2W
Working frequency 24GHz ±24.25GHz
Detecting type Major/Minor/Micro Motion detection
Mounting Flush mounting
Parameters
Input/Output Specification
Input voltage 12-24V DC
Rated voltage 24V DC
Working Current @12Vdc:80±3mA @24Vdc:42±3mA
Working Power ≤1.2W @24V DC
Output signal NO/NC/Pulse dry contact (Factory setting is NO dry contact)
Load type Resistive (load voltage :Vdc≤36V,load current:100mA max)
Sensor Parameter Specification
Radar frequency 24GHz -24.25GHz, ISM band
Transmitting Power 5mW Max.
Detection Area 0-4m(setting by merrytek mini program)
Hold Time 3-7200s (setting by Merrytek mini program)
Daylight threshold 5-2000Lux(setting by merrytek mini program)
Daylight sensor range 0-2000Lux
Radius detection range 4±0.5m(based on 41㎡ open area test)
Sensitivity high/medium/low
Remote control Available(MH18)
Merrytek mini program Available
Mounting height 2.5-4.0m (typical value: 3m)
Detecting Angle 120°
Application Environment Specification
Drill hole Φ50-55mm
Working Temperature 0℃...+50℃
Storage Temperature -25℃~+80℃ Humidity:≤85% (non-condensation)
Certificate Standard Specification
Certificate FCC/RED
Environmental Requirement Compliant with RoHS
IP Rating IP20
Guarantee 5 year(only for product quality problem)
Product Function
Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact 0
Dimension
Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact 1
Wiring
Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact 2
Wiring Layout Suggestion
  • Hand-in-hand wiring is highly recommended, yet star-topology or tree-topology is strongly deprecated
  • When there's more than 1pc sensor in a line, you shall consider that all equipment current consumption shall not surpass your driver's loading capacity
Detection
Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact 3
Initialization

When powered on, the sensor indicator will turn off after flashing for 10 seconds and will enter a 20S detection cycle. If presence is detected, the sensor will report presence and enter hold time calculation; if absence is detected, then the sensor will report absence. During initialization, the sensor will not detect a moving signal, and you can use our MH18 remote to adjust detection area, hold time, daylight sensor, etc, parameters.

Installation Instructions

Embedded mounting installation

  1. Trepanning a 50-55mm hole
  2. Securely wire the cable into the terminal
  3. Press the program button
  4. Put the spring clip into the hole and fasten it well
  5. Ensure the sensor is firmly installed
Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact 4
Factory Default Setting

Detection Area: 4m Hold Time: 30S Indicator Light: open Sensitivity: medium sensitivity

Remote Control MH18
Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact 5
