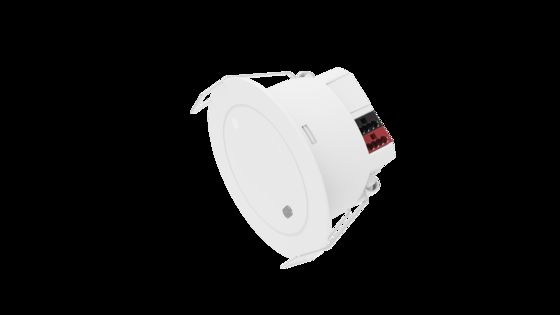

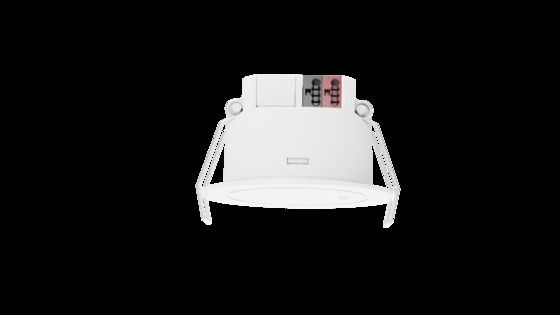

KNX approved 5.8GHz high frequency detector ON/OFF motion detector with 5-year warranty

  • KNX approved 5.8GHz high frequency detector ON/OFF motion detector with 5-year warranty
  • KNX approved 5.8GHz high frequency detector ON/OFF motion detector with 5-year warranty
Lieu d'origine Shenzhen, Chine
Nom de marque Merrytek
Certification CE
Numéro de modèle MSA237K 99 D
Quantité de commande min 100pcs
Prix Négociable
Détails d'emballage Boîte blanche + étiquettes de boîte blanche + carton
Délai de livraison 1, échantillon et petite commande: Dans les 5 jours ouvrables suivant la réception de votre paiement
Conditions de paiement T/T
Capacité d'approvisionnement 10000 PC / mois

Contactez-moi pour des échantillons gratuits et des coupons.

WhatsApp:0086 18588475571

Le WECHAT: 0086 18588475571

Skype est là.: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Tension de fonctionnement 21-30 Vcc Mode de fonctionnement Communication intelligente par KNX
Hauteur de montage 2-4m Durée de vie 5 ans de garantie@Ta 230V à pleine charge
Puissance de travail ≤1w Fonction détecteur haute fréquence
Certifié KNX Oui Montage Support affleurant
Mettre en évidence

KNX approved 5.8GHz motion detector

,

high frequency presence detector sensor

,

ON/OFF motion detector with warranty
Laisser un message
Description de produit
KNX Approved 5.8GHz High Frequency Detector ON/OFF Motion Detector with 5-Year Warranty
Parameters
Input/Output
KNX bus voltage 21-30V DC
KNX bus current 8±1mA
Sensor Parameter
Working Frequency 5.8GHz±75MHz
Transmitting Power 5mW Max
Detection Area ETS setting: 1%-100%
Hold Time ETS setting:3S-7200S
Detecting Range (100% detection area, radius) Major movement(3m height installation): 3.5±0.5m(based on 41㎡ open area test and might change due to different space and different people)
Remote Control Support
Mounting Height 2-4m, typical value: 3m
3db Beam Angle 90°(XZ field)
95° (YZ field)
Application environment
Flush-mounted Hole Size Φ50-55mm
Working Temperature 0℃...+50℃
Storage Temperature -40℃...80℃, Humidity: ≤85%(non-condensing)
Certificate Standard
Certificate FCC/RED
Environmental Requirement Compliant with RoHS
IP Rating IP20
Guarantee 3 year(only for product quality problem under indoor application)

N/A means not available

Product Function
KNX approved 5.8GHz high frequency detector ON/OFF motion detector with 5-year warranty 0
Dimension
KNX approved 5.8GHz high frequency detector ON/OFF motion detector with 5-year warranty 1
Wiring
KNX approved 5.8GHz high frequency detector ON/OFF motion detector with 5-year warranty 2
Wiring layout suggestion:
  • KNX bus wiring suggestion hand in hand to the end, star or tree wiring is not recommended to ensure the stability of signal transmission.
  • KNX bus wiring recommends KNX standard EIB shielded wire or Category 6 network cable; the length of the bus wiring is recommended not to exceed 400 meters, and the number of sensors connected to a bus is recommended not to exceed 12.
  • The number of sensors connected to a bus needs to fully consider the current load capacity of the power supply, which means the sum of the currents of all KNX devices (including sensors) shall not be greater than the load current of the KNX power supply.
Detection Range
KNX approved 5.8GHz high frequency detector ON/OFF motion detector with 5-year warranty 3
Initialization

After routing the physical addresses and setting the channel parameters, follow these steps:

  1. Connect Bus interface
  2. Set Bus and auxiliary power on (note: please make sure that the product has an auxiliary power supply, otherwise the device may not work properly)
  3. Press the programming switch of the product, and the LED light will turn red
  4. Use the bus interface to download the physical address through the ETS software. The programming LED light is off to indicate that the physical address download is successfully completed
  5. Download the application after setting the required application parameters
  6. After downloading the application, the product goes into initialization. During initialization, the detection function is disabled. After 20S, the initialization is completed, and the product works normally
Note: Please use the latest version of ETS 5 or 5.7.2. Please obtain the ETS engineering configuration file of this sensor from our sales staff.
Factory Default Setting

Detection Area: 100% Hold Time: 5S Indicator Light: open

Remote Control MH18
KNX approved 5.8GHz high frequency detector ON/OFF motion detector with 5-year warranty 4
Due to the complexity of product technology and differences in application environment, it is difficult to guarantee a completely accurate or complete description, so this specification is only for user reference. We will reserve the right to make changes to the product specifications without notifying the user, and do not make any commitments and guarantees in the legal sense. At the same time, our company encourages users to supplement or modify the contents of our specifications after using our products.
